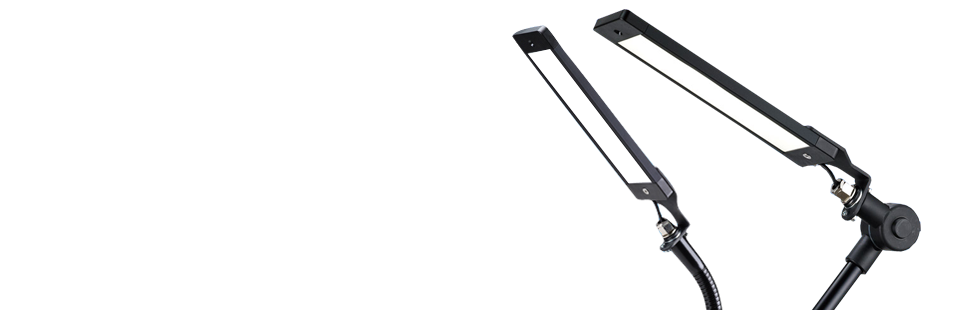

PLANAR LED WORK LIGHTS NLU SERIES NLU SERIES
NLU product series LED saves energy and have a high brightness
and a long life. Power supply comes with constant current device which stabilizes illumination with a voltage range of 100V to 240V
without flickering of the LED light. The NLU uses a light waveguide plate (backlighting) which offers more natural, uniform light, preventing glare and eye fatigue.
Because the NLU series has no ultraviolet light there is no discoloration of the material surface.
- Color Temperature : 6000 K
- Size : 215mm X 60mm X 10mm(NLU-05AC) & 390mm X 20mm X 10mm(NLU-10AC)
- Mounting Method : Neodymium Magnets
- Cable length:2m(6.56ft)with 2-prong power supply
- Ingress protection rating:IP20
Applications
| Lightings for equipment facilities, light works, crafting and inspection |
Specifications
| Type | drawing | Weight | Power source | Wattage | Lumens | Lux/m |
| NLU05-AC |  |
500g | AC100V ~ 240V | 7W | 340 Lm | 150 Lux |
| NLU10-AC | |
650g | 14W | 1400 Lm | 380 Lux | |
| NLU05-DC | |
500g | DC 24V | 7W | 340 Lm | 150 Lux |
| NLU10-DC | |
6560g | 14W | 720 Lm | 380 Lux |
