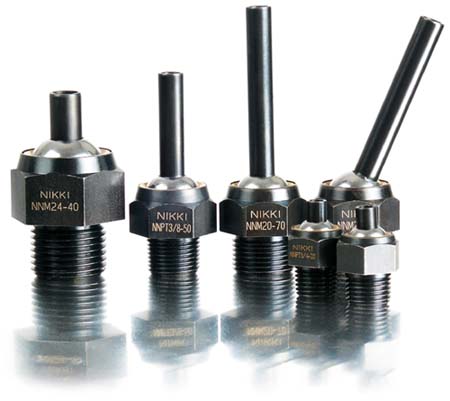

Point Fit Nozzles can be aimed right where you want it. It is not easily knocked out of the aiming posotion once you set it. It works with normal (low, middle and high) coolant pressure. Its capability to shoot precisely at the target helps increase productivity and tool life with machining and grinding operations.

.


Screw specification NNPT taper pipe thread NNM metric thread
Nozzle inclined angle ±35°







*NNPT NNM specification

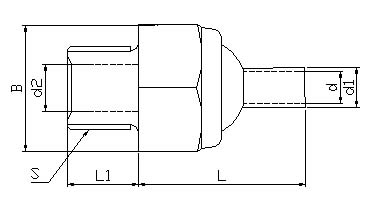

Standard Boundary dimension mm
Bearing number d

Screw

s

 L L1 d1 d2 Hexagonal two aspect
B
NNPT 1/8 - L 4 PT 1/8 40 10 6 6 17
NNPT 1/4 - L 4 PT 1/4 20 40 60 10 6 6 17
NNPT 3/8 - L 6 PT 3/8 30 50 70 13 8 10 24
NNPT 1/2 - L 8 PT 1/2 40 60 80 18 10 12 32
NNM ‚P‚O- L 4 M 10 x 1,25 20 40 60 10 6 6 17
NNM ‚Q‚O- L 6 M 20 x 1,5 30 50 70 13 8 10 24
NNM ‚Q‚S- L 8 M 24 x 2,0 40 60 80 18 10 12 32
