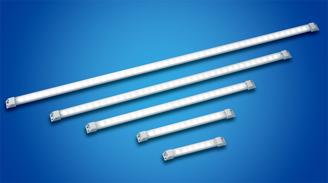

Non-Waterproof LED Light NLT SERIES
High intensity LED lights save energy.
NLT Series can be used with machine tool, food processing equipment.
Compact design can fit any size of machine.
Polycarbonate light covering.
Constant current device to stabilize illumination.
- CE, FCC certified, REACH and RoHS compliant
- Color temperature:6000K-Cool White(standard)
- Life:40,000 hours(@L70 , 40°C/104°F)
- Work environment:-10°C~ 40°C(14°F~104°F)
- Cable length:3M(9.84ft)(AWG26 2C)
- Ingress protection rating:IP65
- Cover:Clear/Frosted
Specifications
| Type | Drawing | Power source | Wattage | Lumens | Lux/m |
| NLT 05 |   |
DC24V (AC100~240V) |
2.4W(3.8W) | 210 lm | 60 Lux |
| NLT 10 | |
4.8W(6w) | 420 lm | 110 Lux | |
| NLT 20 | |
DC24V | 10.8W | 840 lm | 210 Lux |
| NLT 30 | |
15.6W | 1260 lm | 320 Lux | |
| NLT 40 | |
21.6W | 1680 lm | 400 Lux |
| ?We changed the notation of the lumes from the theoretical value to the actual from 2013/6/1. |

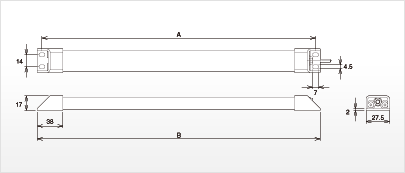

Dimensions(Standard)
 |
|
