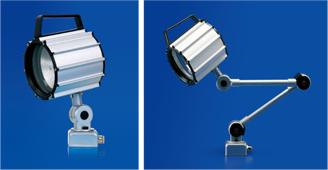

HALOGEN SPOT LIGHTS
NH SERIES
Waterproof and destproof Halogen lights are suitable for use with machine tools, especially under harsh work conditions. All models have strong resistance to heat and high humidity. Swarf, coolant and chip are no concern about our lights. Variety of arm length, power source and bulb wattage.
  • CE certified,REACH and RoHS compliant
  • Ingress protection rating:IP67(lamp head only)



Specifications

Type Arm length Mount pitch Power source Wattage
NH-70-S ............ 45×45mm 4-Φ6.2 24V 24V 70W
NH-70-M 220×220mm 45×45mm 4-Φ6.2 24V 24V 70W
NH-70-L 400×400mm 45×45mm 4-Φ6.2 24V 24V 70W

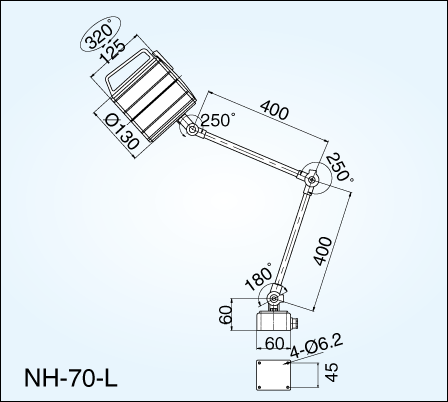

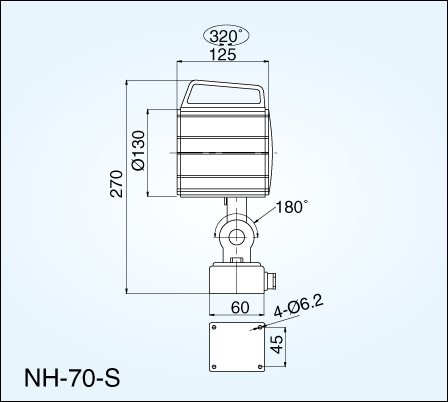

?Dimensions
