FLUORESCENT LIGHTS
NF SERIES
NF models are waterproof and dustproof. There are ideal lights for use not only in machine but also outdoors. Wide choices of wattage available. Glass or acrylic resin tubes are available for all sizes.
  • CE, RoHS and REACH certified
  • Ingress protection rating:IP-67
  • Tube material:glass/acrylic

Specifications

Type Power source Frequency Ballast Diameter Length(mm)
NF 13TA(G) AC100/220V
50/60Hz
wire changing traditional 70 415
NF 15TA(G) 740
NF 18TA(G) AC100~240V
50/60Hz
wire in common electronical 70 515
NF 20TA(G) 940
NF 36TA(G) 700
NF 40TA(G) 1496
NF 18TA(G) DC24V wire in common electronical 70 515
NF 20TA(G) 940
NF 36TA(G) 700
NF 40TA(G) 1496

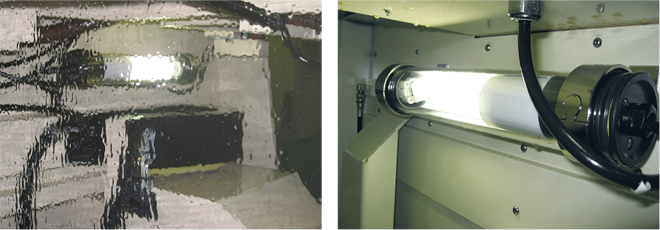

Example



Mounting Bracket

Cable cover
