FIXED POINT NOZZLES FIXED POINT NOZZLES
Our Point Fixed Point Nozzles are designed to direct the coolant at any target you aim at.
Coolant flow volume is consistant at maximum nozzle angle.
Ensuring a stable and accurate stream for cutting and grinding.
Contributing to working stability , working efficiency, and longer tool life which will help keep your tooling cost down.

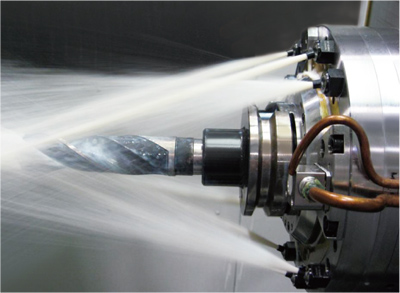

Example
 |
• It never misses target once nozzles tip is set.
• Metallic body is high pressure resistant.
• Both national pipe(NPT) and Metric(mm) thread available.
• Maximum angle adjustment is ±35°. |
Specifications
| Model | Dimensions (mm) | |||||||
| Type | d | Thread(s) | L | Drawing | L1 | d1 | d2 | Hex B |

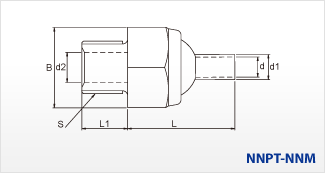

| NNPT 1/8-L | 4 | PT 1/8 | 20 | 10 | 6 | 6 | 17 | |
| 40 |  |
|||||||
| 60 | ||||||||
| NNPT 1/4-L | 4 | PT 1/4 | 20 | |
10 | 6 | 6 | 17 |
| 40 | |
|||||||
| 60 | |
|||||||
| NNPT 3/8-L | 6 | PT 3/8 | 30 | |
13 | 8 | 10 | 24 |
| 50 | |
|||||||
| 70 | |
|||||||
| NNPT 1/2-L | 8 | PT 1/2 | 40 | |
18 | 10 | 12 | 32 |
| 60 | |
|||||||
| 80 | |
|||||||
| NNM 10-L | 4 | M 10×1.25P | 20 | |
8.5 | 6 | 6 | 17 |
| 40 | |
|||||||
| 60 | |
|||||||
| NNM 20-L | 6 | M 20×1.5 P | 30 | |
13 | 8 | 10 | 24 |
| 50 | |
|||||||
| 70 | |
|||||||
| NNM 24-L | 8 | M 24×2.0 P | 40 | |
18 | 10 | 12 | 32 |
| 60 | |
|||||||
| 80 | |
|||||||

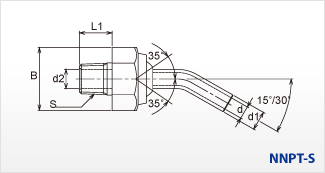

| NNPT 1/8-S | 4 | PT 1/8 | Length can chose
angle 15°/30° |
10 | 6 | 6 | 17 | |
| NNPT 1/4-S | 4 | PT 1/4 | 10 | 6 | 6 | 17 | ||
| NNPT 3/8-S | 6 | PT 3/8 | 13 | 8 | 10 | 24 | ||
Special specification
| Model | Dimensions (mm) | |||
| Type | D | d | L | Remarks |

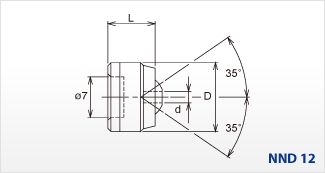

| NND 12 | 12 | 2 | 8 | Other sizes availble |
| NND 16 | 16 | 4 | 21 | |

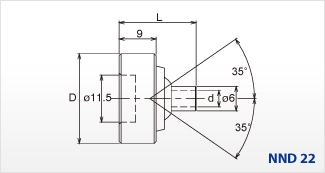

| NND 22 | 22 | 4 | 18.7 | |
Dimensions
 |
 |
 |
 |
