MAGNETIC PRODUCTS
Magnetic Products
Magnetic products
Application:Multi-purpose magnetic stands are designed to hold measuring instruments like a dial gauges.
Standard
Type:NM-K
Magnetic holding power:80kg(176lbs)
Fine adjustment function
Type:NM-KV
Magnetic holding power:80kg(176lbs)
Fine adjustment function(mechanical)
Type:NM-MX
Magnetic holding power:100kg(220lbs)

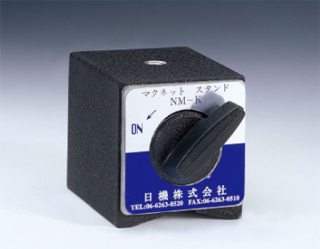

Magnetic stand

Type:NM-B80
Size:65X50X55(H)mm
Holding power max:80KG(176lbs)
Type:NM-B100
Size:73X50X55(H)mm
Holding power max:100KG(220lbs)

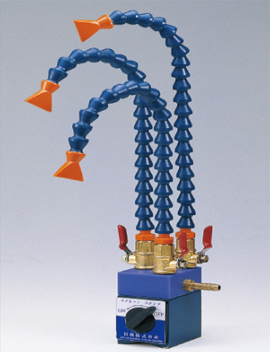

Coolant nozzles with magnetic bases
Application:Coolant system used on electric discharge machines.
Type:NM-C3
Magnetic stand NM-B80
Nozzles length:375mm
Nipple:1/8"

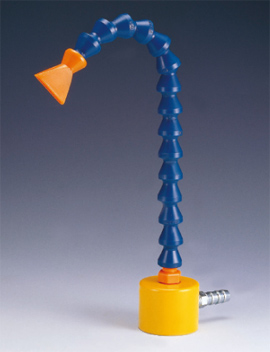

Type:NM-C1
Magnetic base ψ40
Nozzles length:225mm
Nipple:1/8"
