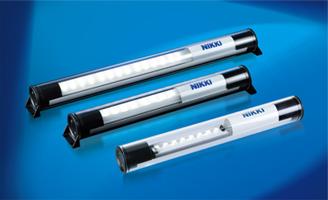

LED LINEAR LIGHT NLL SERIES
High intensity LED Lights save energy.
Constant current device stabilizes illumination.
The NLL LED lights are brighter, have a longer life, use less power and prodece less heat than Fluoresent.
- CE, FCC certified, REACH and RoHS compliant
-
Color temperature:6500K(standard),6000K, 3000K, 591nm(optional)
- Life :40,000 hours(@L70 , 40°C/104°F)
- Work environment :-10?~40?(14°F~104°F)
- Cable length:3M(9.84ft)(VCTF0.75mm² 2C)
- Tube:Glass
- Ingress protection rating:IP67
-
Optional:-Mounting Bracket-Cable cover-Spread cover
Specifications
| Type | Drawing | Power source | Wattage | Lumens | Lux/m |
| NLL13G | |
DC24V | 10W | 750Lm | 190 Lux |
| NLL18G | |
DC24V | 10W(12W) | 750Lm | |
|
AC100V-240V | ||||
| NLL36G | |
DC24V | 20W(21W) | 1500Lm | 350 Lux |
|
AC100V-240V | ||||
| NLL40G | |
DC24V | 25W(28W) | 1850Lm | 440 Lux |
|
AC100V-240V | ||||
| NLL13G(Lens) | |
DC24V | 10W | 730Lm | 1850 Lux |
| NLL18G(Lens) | |
DC24V | 10W(12W) | 730Lm | |
|
AC100V-240V | ||||
| NLL36G(Lens) | |
DC24V | 20W(21W) | 1450Lm | 3070 Lux |
|
AC100V-240V | ||||
| NLL40G(Lens) | |
DC24V | 25W(28W) | 1850Lm | 2140 Lux |
|
AC100V-240V | ||||
| NLL13TG |
|
DC24V | 14W | 1050Lm | 250 Lux |
| NLL18TG | DC24V | 14W(18W) | 1050Lm | 250 Lux | |
| AC100V-240V | |||||
| NLL36TG | DC24V | 28W(32W) | 2100Lm | 580 Lux | |
| AC100V-240V | |||||
| NLL13TG(Lens) | DC24V | 14W | 1030m | 1520 Lux | |
| NLL18TG(Lens) | DC24V | 14W(18W) | 1030Lm | 1520 Lux | |
| AC100V-240V | |||||
| NLL36TG(Lens) | DC24V | 28W(32W) | 2050Lm | 3180 Lux | |
| AC100V-240V |

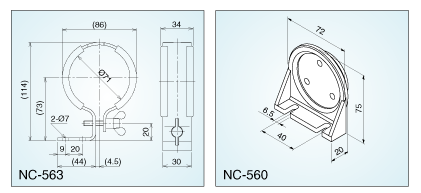

Mounting Bracket |
Cable cover |
 |
 |

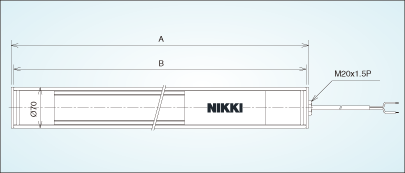

Dimensions
 |
|
