HIGH BAY LED LIGHT NLH SERIES
High power LED, saves energy,
brighter and has a longer life than high presssure sodium vapor lamps.
High bay LED lights used in factories and warehouses.
Lights have constant current device to stabilize illumination.
Aluminum designed body for light weight and heat dissipation.
NLH series designed to withstand 8KV surge lightning.
- Life:40,000 hours(@L70,40°C/104°F)
- LED Illuminating angle:90°(with lens),120°
- Work environment:-20°C~50°C(-4°F~122°F)
- Working humidity:10%~90%
- Color rendering property:Ra80
- Ingress protection rating:IP67(light source only)
- Luminescence efficiency:above 80lm/W
Specifications
| Type | drawing | Power source | Wattage | Color temp | Lum/m | Weight |
| NLH-60 |  |
AC100~240V | 55W | 5700K | 5800 lm | 5.9kg |
| NLH-100 | |
95W | 9500 lm | 7.1kg | ||
| NLH-150 | |
145W | 15000 lm | 9.5kg | ||
| NLH-200 | |
190W | 19000 lm | 10.2kg |
| ?We changed the notation of the lumes from the theoretical value to the actual from 2013/6/1 |
Installation sample
Floor space-600m² |
 |
 |

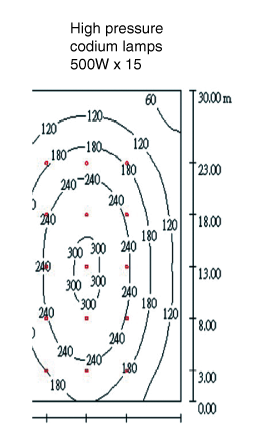

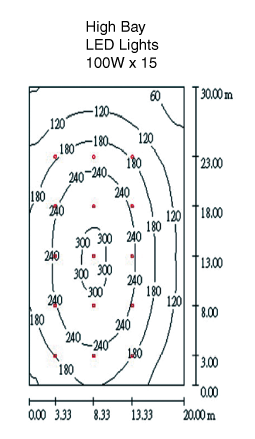

High Bay LED Light & High pressure codium lamps difference
| Item | High Bay LED light | High pressure codium lamps | Comparison |
| Wattage | 100W | 500W | 80% save |
| Lux(9.5m) | average:186 Lux | average:180 Lux | - |
| Life | 40,000 hrs | 12,000 hrs | 3 times longer |

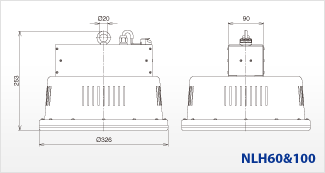

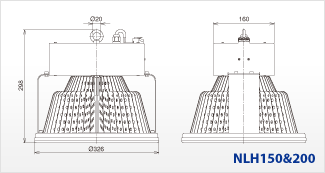

Dimensions
 |
 |
