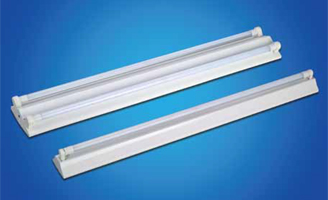

LED T-8 TUBE LIGHT SERIES
NLT8 SERIES
The NLT8 LED series is designed to work in a standard T8 fluorescent light tube fixture with G13 type sockets. They are energy efficient, using middle-power LEDs with high intensity and a long life. The NLT8 power supply comes with a constant current device which stabilizes illumination with a voltage range of 100V to 240V.
NOTE: In order to install the NLT8 LED tube into the existing T-8 fluorescent light fixture, the ballast must be removed first.

The NLT8 heat sink design offers a light distribution angle of 160 degrees. In addition, the end caps are rotatable +/-30 degrees allowing the lamp to be adjusted to the desired position. NLT8 tubes are available in either natural white 4000K or cool white 5700K with a high color rendering index of 80.
Applications:
Home, office, factory, warehouse, gymnasium, indoor parking lots

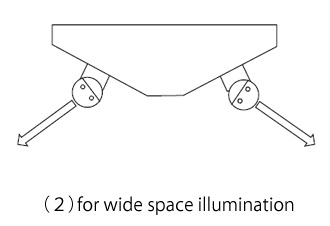

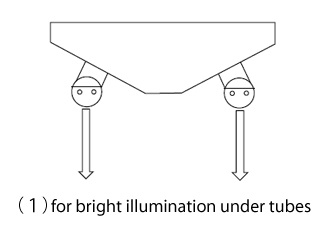

Angle adjustment mechanism (+/- 30 degrees)
NLS15 NLS15

  • Type NLT8 ·Body Plastic(PC)/Alminum
  • Socket G13
  • Luminous flux 2,200/2,000 lm
  • Color Rendering Index(Ra) 80
  • Color Temperature 5700 K/4000 K
  • Beam Angle 160°(50%Max.)? 250°(10%Max.)
  • Input Voltage 100~240V
  • Frequency 50/60Hz
  • Wattage 22W
  • Working temperature -10?~40?
  • Life 40,000Hrs(@L70)
  • Length 1,198 mm
  • Diameter 28 mm
  • Weight 400 g
  • MOQ 10pcs

Specifications

Type Color Temperature CRI (Ra) Lumens LUX/m
NLT8I-40 5700 K 80 2,200 lm 600 lux
NLT8I-40-NW 4000 K 80 2,000 lm 530 lux
