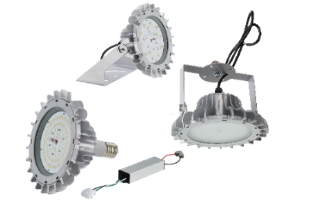

HIGH BAY LED LIGHTS E39 SERIES NLH E39 SERIES
LED ceiling lights with 10,200 lm in luminous flux
and above 80lm/W in efficiency have been achieved using high efficient white highpower LEDs..The combination of plastic
materials and an aluminum body with a air-cooled multi-fins type heat-sink realized high rigidity and high heat
dissipation, as well as reducing the weight.
- Input Voltage: 100VAC ~ 240VAC 50/60Hz
- Rated Life: 40,000 hours (@L70 40C)
- Working Temperature: -20C ~ 50C/-4F ~ 122F
- Working Humidity: 10% ~ 90%
- Color Temperature: 5,700 Kelvin
- Wattage: 125W | CRI(Ra) 75
- Ingress protection rating:IP67 (Lamp Only)
- Body: Aluminum/Plastic
- Operating temperature: -10C ~ 40C
Applications
| High Bay Ceiling Lights Replacement for Metal Halide and Mercury Vapor Lights |
Specifications
| Model | Power | Light Temperature | Wattage |

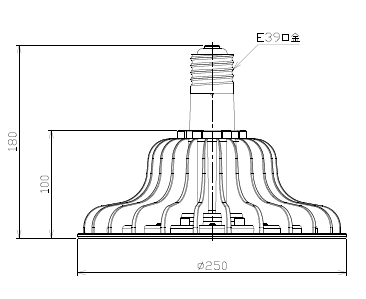

| NLH 60S E39 | AC100~240V | 5700 K | 63 watts |

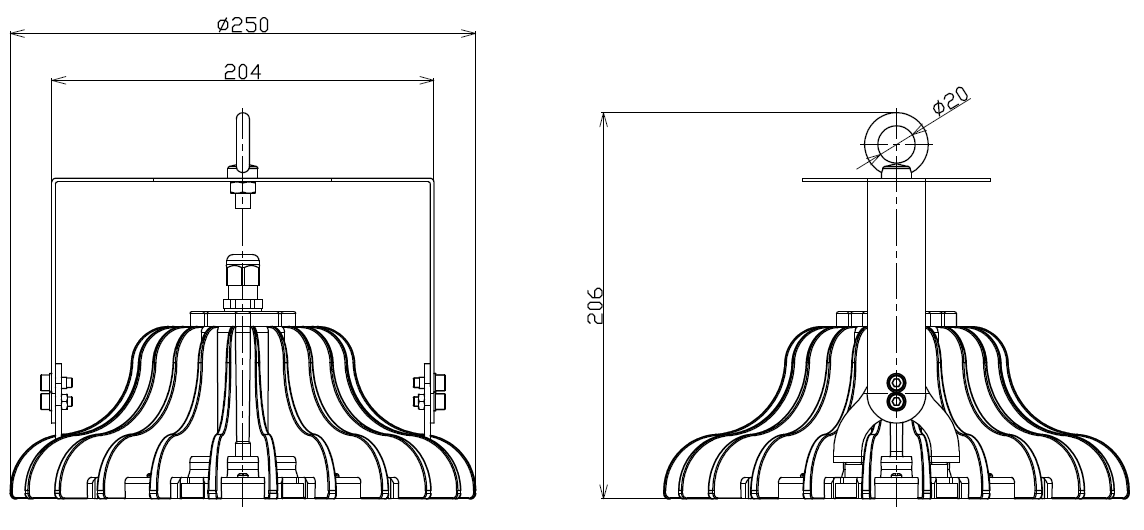

| NLH 60S HL | AC100~240V | 5700 K | 63 watts |

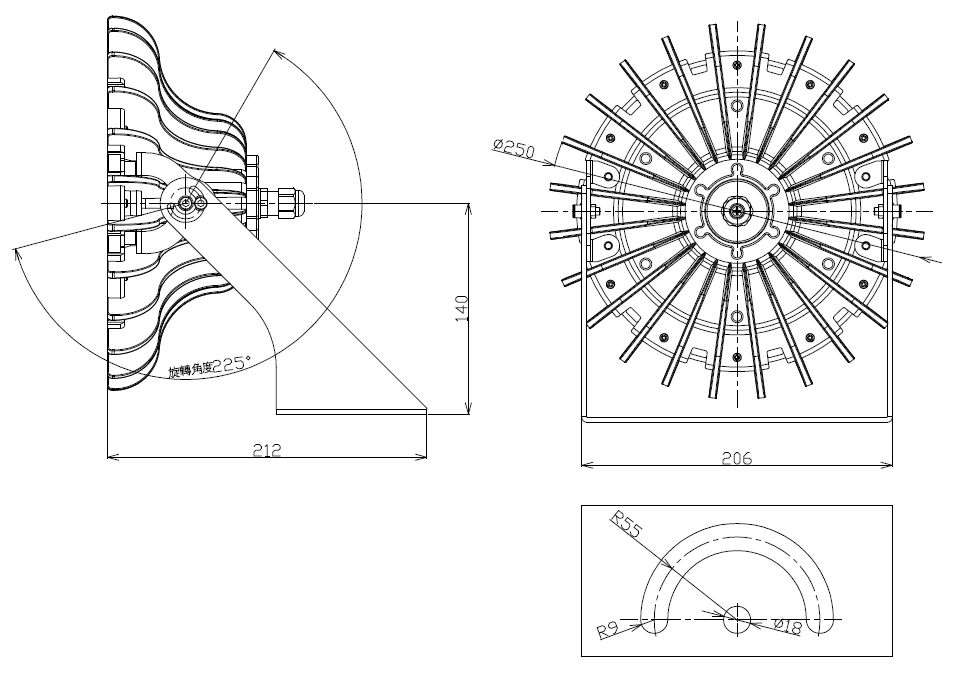

| NLH 60S FL | AC100~240V | 5700 K | 63 watts |
| NLH-120 E39 | AC100~240V | 5700 K | 122 watts |
| NLH-120 HL | AC100~240V | 5700 K | 122 watts |
| NLH-120 FL | AC100~240V | 5700 K | 122 watts |
|
|
