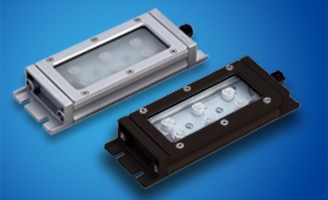

FLAT LED LIGHT NLE-N SERIES
The NLE-N series has a new circuit board design compard to
the traditional NLE Light that incorporates the power supply
underneath the LED circuit, thus making the lights foot print
smaller and more accommodating to compact work areas.
- Color temperature:6500K(standard), 6000K, 3000K, 591nm(optional)
- Life:40,000 hours(@L70 , 40°C/104°F)
- Work environment:-10?~40?(14°F~104°F)
- Cable length:3M(VCTF 0.5mm²2C)
- Ingress protection rating:IP67
- Optional:-Mounting Bracket
-Cable cover-Tempered Glass:frosted/clear
Specifications
| Type | Drawing | Power source | Wattage | Lumens | Lux/m |
| NLE13-N | DC 24V | 10W | 850 lm | 1795 Lux | |
| NLE20-N | 15W | 1200 lm | 1985 Lux |

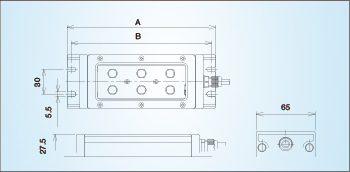

Dimensions
 |
|

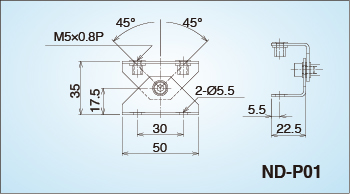

Mounting Bracket(adjustable angle) |
Cable cover |
 |
 |
