FLAT LED LIGHT
NLF SERIES
High intensity LED Lights save energy. This series is narrow designed, saving space, fitting any size of machine. Constant current device stabilizes illumination.
  • CE, FCC certified, REACH and RoHS compliant
  • Color temperature:Color temperature:6500K(standard)   6000K, 3000K, 591nm(optional)
  • Life:40,000 hours(@L70 , 40°C/104°F)
  • Work environment:-10?~40?(14°F~104°F)
  • Cable length:3M(9.84ft)(AWG26 2C)
  • Ingress protection rating:IP67
  • Optional:-Mounting Bracket
                       -Cable cover
                       -Tempered Glass:frosted/clear

Specifications

Type drawing Power source Wattage Lumens Lux/m
NLF 13 DC 24V 10W 650 lm 1000 Lux
NLF 26 20W 1300 lm 1900 Lux
?We changed the notation of the lumes from the theoretical value to the actual from 2013/6/1.
?Please contact us for information about other color temperatures available.

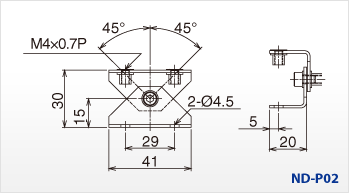

Mounting Bracket(adjustable angle)

Cable cover

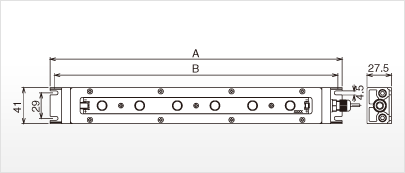

Dimensions(Standard)

Type/Length((mm) A B
NLF13 330 320
NLF26 590 580

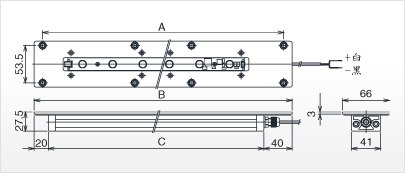

Dimensions(Flange)

Type/Length((mm) A B C
NLF13 330 364 304
NLF26 600 624 564
