FLAT LED LIGHT
NLE SERIES
High intensity LED Lights save energy. Flat design for use in compact spacing. Constant current device stabilizes illumination.
  • CE,FCC certified,REACH and RoHS compliant
  • Color temperature:6500K(standard) ?6000K?3000K?591nm(optional)
  • Color:black(standard)/silver(optional)
  • Life:40,000 hours(@L70,40°C/104°F)
  • Work environment:-10°C~ 40°C(14°F~104°F)
  • Cable length:3M(9.84ft) (VCTF 0.5mm² 2C)
  • Ingress protection rating:IP67
  • Optional:-Mounting Bracket
                       -Cable cover
                       -Tempered Glass:frosted/clear

?Specifications

Type drawing Power source Wattage Lumens Lux/m
NLE 13 DC 24V 8W 750 lm 1850 Lux
NLE 20 13W 1100 lm 1230 Lux
NLE 26 19W 1500 lm 2880 Lux
NLE 40 25W 2150 lm 2650 Lux
?We changed the notation of the lumes from the theoretical value to the actual from 2013/6/1.
?Please contact us for information about other color temperatures available.

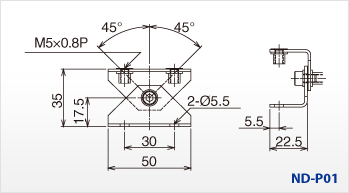

Mounting Bracket

Cable cover

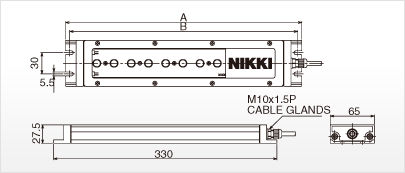

Dimensions(Standard)

Type/Length(mm) A B
NLE13/NLE20 330 320
NLE26/NLE40 530 520

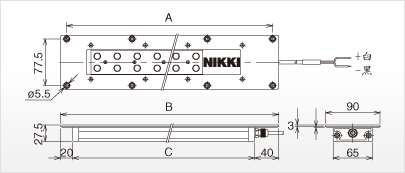

Dimensions(Flange)

Type/Length(mm) A B C
NLE13F/NLE20F 340 360 300
NLE26F/NLE40F 540 560 500
