LED SPOT LIGHT
NLS SERIES
High intensity LED Lights save energy. Exellent replacement for any halogen spot light. Constant current device stabilizes illumination.
  • CE,FCC certified,REACH and RoHS compliant
  • Color temperature:6500K(standard)?3000K(optional)
  • Life:40,000 hours(@L70,40°C/104°F)
  • Work environment:-10°C~ 40°C(14°F~104°F))
  • Cable length:3M(9.84ft)(VCTF 0.5mm² 2C)
  • Ingress protection rating:IP67(lamp head only)
  • Optional:Mounting Brackert(NL-23,NL-28)








Specifications

Type Drawing Power source Wattage Lumens Lux/m

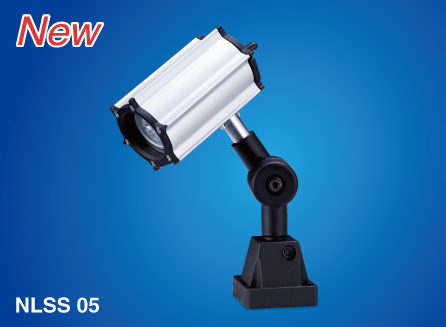

NLSS05 DC24V 5W 280 lm 1570 Lux
AC100~240V
NLS10   DC24V
AC100~240V

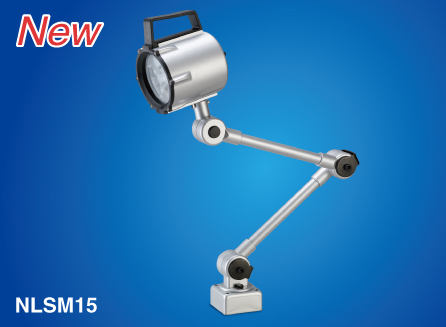

NLS15   DC24V 11W 650 lm 3310 Lux
  AC100~240V 13W
NLS20

DC24V

 11W 750 lm 6110 Lux

AC100~120V
AC200~240V

 13W
We changed the notation of the lumes from the theoretical value to the actual from 2013/6/1.
Please contact us for information about other color temperatures available.

Dimensions


Type/Length(mm) A B
NLSM 10 415 280
NLSL 10 415 400
Type/Length(mm) A B
NLSM 15/20 220 220
NLSL 15/20 400 400

Mounting Bracket
